Features
| Warranty length | 5 Years (Speakers), 2 Years (Subwoofer) |
|---|---|
| Brand | Audio Affair |
Tech Specs
CONCEPT CENTRE
Enclosure type: 2-way reflex
Bass Unit: 2 x 100mm
Treble Unit: 25mm
Frequency Response: 75Hz - 22kHz
Nominal Impedance: 6ohm
Minimum Impedance: 4ohm
Sensitivity: 88dB
Recommended Power: 25 - 75w
Crossover Frequency: 2.9kHz
Dimensions (HDW): 150 x 198 x 430mm
Weight: 6.8kg
CONCEPT 40
Enclosure type: 2-way reflex
Woofer: Double woofer
Bass Unit: 2 x 125mm
Treble Unit: 25mm
Frequency Response: 53Hz - 22kHz
Nominal Impedance: 6ohm
Minimum Impedance: 4ohm
Sensitivity: 90dB
Recommended Power: 25 - 150w
Crossover Frequency: 2.3kHz
Dimensions (HDW): 972 x 288 x 170mm
Weight: 18.5kg
CONCEPT 20
Enclosure type: 2-way reflex
Bass Unit: 125mm
Treble Unit: 25mm
Frequency Response: 64Hz - 22kHz
Nominal Impedance: 6ohm
Minimum Impedance: 4ohm
Sensitivity: 86dB
Recommended Power: 25 - 75w
Crossover Frequency: 2.9kHz
Dimensions (HDW): 265 x 282 x 170mm
Weight: 12kg
3060S SUBWOOFER
Enclosure Type: Infinite baffle
Bass Driver Unit: 200mm (8")
Freq Resp (+3/-6dB): 35 - 250 Hz
Internal Amp Power: 150W Class D
Crossover Frequency: 35 - 250 Hz
Effective Volume: 10.6 litre
Dimensions (WHD): 480 x 300 x 150mm
Weight: 8.5Kg each (18.7lbs)
GENERAL
Finish: Lacquered Black OR White Gloss
Warranty: 5 Years
Product Description

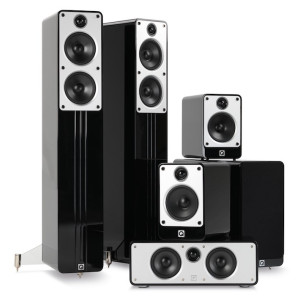

This Q Acoustics 5.1 Package contains a pair of Concept 40s for fronts plus a pair of Concept 20s for rears along with a Concept Centre and 3060S Subwoofer. This package is available in a Gloss Black or Gloss White finish and allows movie lovers to experience soundtracks and dialogue with the same sonic clarity that audiophiles enjoy from their award-winning Concept stereo models.
This outstanding level of performance is achieved because the Concept models incorporate Gelcore Construction loudspeaker cabinets. This ground breaking technology, developed by Q Acoustics, almost totally eliminates loudspeaker cabinet resonance, a major factor limiting the sonic performance of modern loudspeakers.
For more info, visit our main Concept 40 page
For more info, visit our main Concept 20 page
For more info, visit our main Concept Centre page
For more info, visit our main 3060S Subwoofer page
