Features
| Warranty length | 2 Years |
|---|---|
| Brand | Wharfedale Speakers |
Tech Specs
Diamond 12.1 (Pair)
- Type: 2-way bass reflex
- Bass: 5" black woven Kevlar cone
- Treble Driver: 1" Textile Dome
- Sensitivity (2.83V @1M): 88dB
- Recommended Amp Power: 20-100W
- Peak SPL: 96dB
- Nominal Impedance: 8Ω Compatible
- Minimum Impedance: 3.9Ω
- Freq Response: (+/-3dB) 65Hz ~20kHz
- Bass Extension (-6dB): 60Hz
- Crossover Freq: 2.6kHz
- Cabinet Volume: 8.2L
- Dimensions (HWD): 312 x 180 x 278mm
- Net Weight: 6.8kg/pcs
Diamond 12.C
- Type: 2-way closed box system
- Bass: 2x 5" advanced PP Cone
- Treble Driver: 1" Textile Dome
- Sensitivity (2.83V @1M): 90dB
- Recommended Amp Power: 20-120W
- Peak SPL: 96dB
- Nominal Impedance: 8Ω Compatible
- Minimum Impedance: 4Ω
- Freq Response: (+/-3dB) 90Hz ~20kHz
- Bass Extension (-6dB): 80Hz
- Crossover Freq: 2.2kHz
- Cabinet Volume: 8.7L
- Dimensions (HWD): 180 x 480 x 208mm
- Net Weight: 8.5kg/pcs
SW-10
- Drive Units: 10" long-throw cone
- Freq Response (±3dB): 40 - 120Hz
- Amplifier Power Output: 200W
- Peak Power Output: 350W
- Line In Sensitivity: 200mv (max)
- Crossover Range: 30 - 150Hz
- Stereo Line In: 2 x RCA Phono
- Mono (LFE) Line In: RCA Phono
- Impedance: Line / LFE (10/5kΩ)
- Signal-to-Noise Ratio: ≥85dB
- Avg Max Output @1m: 110dB
- Func: Phase inversion, Auto on-off
- Accessories: IEC power cord
- Dimensions (HWD): 358 x 336 x 366mm
- Height with Feet: 58mm
- Net weight: 15kg
Product Description
The Wharfedale Diamond 12.1 HCP 5.1 Speaker package is the perfect speaker package who want top quality sound but with an affordable price point that makes this setup the perfect gateway into the Wharfedale eco-system.
Diamond 12.1
Taking care of the main part of your surround setup is a quartet of Diamond 12.1 bookshelf speakers (or stand mounted if you prefer) that deliver serious sound in such a small footprint, with a 5 inch woofer – these are truly a fantastic all round speaker.

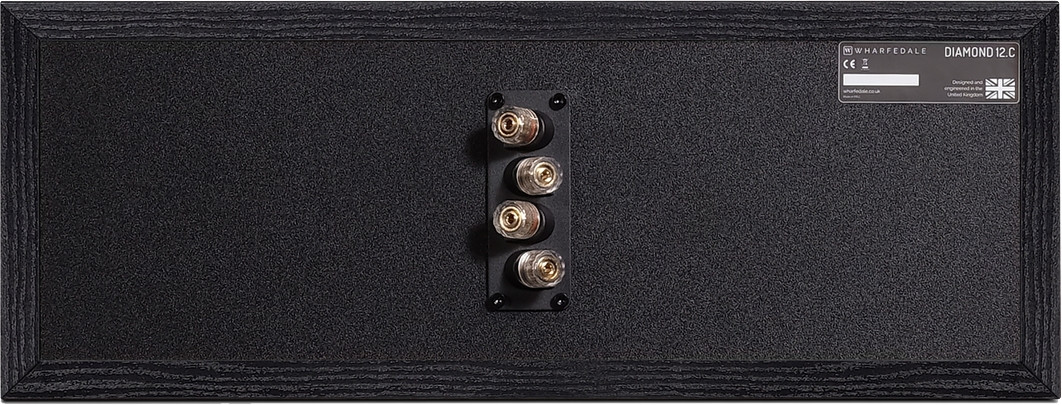

Diamond 12.C
The centre channel is as important as your side and rear channels which is where the 12.C takes over proceedings providing that middle ground with a 1 inch treble driver to give that cinematic feel to your sound.
SW-10
Finally, the SW-10 takes care of your deep bass spectrum which laser like focus. With the ability to reproduce sound at 40Hz all the way through to the 120Hz range (at 13dB) this brings the rest of the package to life.
